Tunnel construction presents unique challenges, particularly when it comes to stabilizing the surrounding rock mass. In projects where the ground conditions are poor, ensuring the tunnel remains stable during and after excavation is critical for both safety and structural integrity. One of the most effective solutions in modern tunneling is the use of self-drilling rock bolts. These advanced support systems offer significant advantages over traditional methods, making them indispensable in challenging geotechnical environments.
What is a Self-Drilling Rock Bolt?

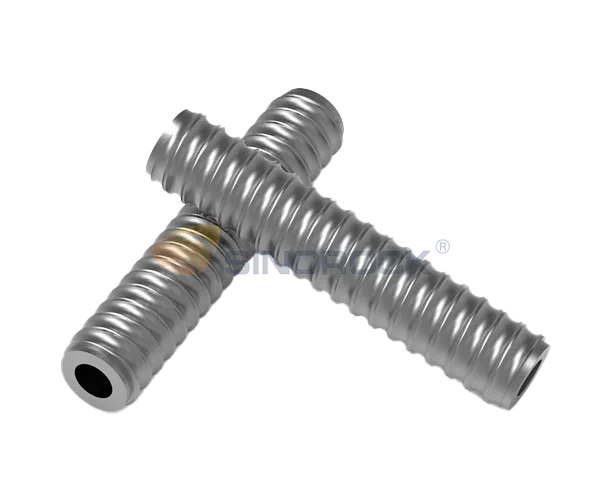

A self-drilling rock bolt is a hollow steel bar that combines drilling and grouting in a single operation. It is equipped with a sacrificial drill bit at its tip, allowing it to be installed quickly in unstable ground conditions. These bolts are designed for use in various geological formations, from soft soil to fractured rock, where conventional anchor systems may be ineffective or time-consuming to install.
The key components of a self-drilling rock bolt include:
- Hollow bar: Serves as a conduit for grout injection, providing reinforcement once installed.
- Drill bit: A sacrificial component used to create the hole for the bolt. Different types of drill bits are available to suit various ground conditions.
- Coupling: Connects multiple sections of the bolt when longer lengths are required.
- Grout: Fills the hollow core and surrounding annular space, bonding the bolt to the surrounding rock or soil.
Why Self-Drilling Rock Bolts Are Ideal for Tunnel Construction
- Simultaneous Drilling and Grouting
One of the primary advantages of self-drilling rock bolts is the ability to combine drilling and grouting in a single step. In unstable or collapsing ground, traditional drilling and bolt installation methods can be inefficient or even dangerous. With self-drilling bolts, there is no need for pre-drilling a hole that could collapse before the bolt is installed. The bolt itself acts as the drill, immediately stabilizing the hole while injecting grout to bond the bolt in place. - Rapid Installation
Time is often a critical factor in tunnel construction, particularly when working under high-pressure timelines or in emergency situations. Self-drilling rock bolts offer a much faster installation process compared to traditional methods. Because they eliminate the need for separate drilling and grouting steps, these bolts can be installed in a fraction of the time, making them ideal for high-productivity environments. - Versatility in Poor Ground Conditions
Tunnels frequently pass through a variety of rock formations and soil types, ranging from hard rock to loose, unconsolidated materials. Self-drilling rock bolts are uniquely suited for these variable conditions. Their hollow design allows for efficient grout injection, even in fractured or unstable ground, ensuring full encapsulation of the bolt. This makes them a preferred choice in conditions where conventional rock bolts would struggle to maintain stability. - High Load Capacity
Despite their relatively simple design, self-drilling rock bolts are capable of supporting substantial loads. The combination of steel reinforcement and grout provides excellent resistance to both shear and tensile forces, making them highly effective in stabilizing tunnels subjected to dynamic loads, such as those caused by excavation, seismic activity, or heavy traffic. - Cost-Effectiveness
While self-drilling rock bolts may initially appear more expensive than traditional bolts, their overall cost-effectiveness becomes evident when considering the time and labor savings during installation. The reduced need for specialized equipment, combined with faster project completion times, often results in significant cost reductions. Furthermore, their ability to provide long-term stability in challenging conditions can minimize the need for costly repairs or maintenance.
Applications of Self-Drilling Rock Bolts in Tunnel Construction
Self-drilling rock bolts are widely used in various tunneling applications, including:
- Highway tunnels: For stabilizing rock faces and ensuring safety in long stretches of roadway tunnels.
- Railway tunnels: Providing the necessary support for tunnels in complex geological formations, ensuring minimal deformation and preventing collapses.
- Hydropower tunnels: Self-drilling bolts are often used in the construction of tunnels for hydropower plants, where they reinforce the tunnel walls and protect against water ingress.
- Mining tunnels: These bolts are particularly useful in the mining industry, where tunnels must be quickly reinforced to prevent cave-ins and ensure worker safety.
Advantages of Self-Drilling Rock Bolts Over Traditional Rock Bolts
While both self-drilling and traditional rock bolts serve the purpose of reinforcing tunnel walls, self-drilling rock bolts offer several key advantages:
- Faster Installation: As mentioned earlier, the ability to combine drilling and grouting in one step reduces the time needed for each bolt installation.
- Increased Safety: In unstable ground conditions, the risk of collapse during the installation of traditional rock bolts is high. Self-drilling bolts minimize this risk by providing immediate stabilization.
- Adaptability: Self-drilling bolts can be installed in a variety of ground conditions, making them a versatile solution for projects with complex geotechnical challenges.
- Reduced Equipment Needs: Traditional rock bolt installation requires a range of equipment, including drilling rigs, grout pumps, and bolting rigs. Self-drilling bolts reduce the need for multiple pieces of equipment, simplifying logistics and reducing costs.
Best Practices for Using Self-Drilling Rock Bolts in Tunnels
To ensure the effectiveness of self-drilling rock bolts in tunnel construction, it is essential to follow best practices for their installation:
- Proper Site Investigation: Before selecting self-drilling rock bolts, a thorough geological assessment should be conducted to determine the ground conditions and the required bolt length, diameter, and type of drill bit.
- Correct Grouting Procedure: Grouting is a critical step in the installation of self-drilling rock bolts. The grout must be mixed to the correct consistency and pumped into the hollow core of the bolt to ensure full encapsulation and proper bonding.
- Regular Inspection and Maintenance: While self-drilling rock bolts provide long-term stability, regular inspection is necessary to identify any potential issues, such as corrosion or grout failure, and address them promptly.
Sinorock Self-Drilling Rock Bolts: A Trusted Solution
When it comes to self-drilling rock bolts, Sinorock stands out as a leading provider of high-quality anchoring solutions. With years of experience in the field of geotechnical engineering, Sinorock offers a range of self-drilling rock bolts designed to meet the specific needs of tunnel construction projects. Their bolts are engineered for superior performance, even in the most challenging ground conditions, providing a reliable and cost-effective solution for tunnel reinforcement.
Sinorock’s self-drilling rock bolts are manufactured to the highest industry standards, ensuring exceptional load-bearing capacity and long-term durability. Their product range includes various sizes and configurations to suit different tunnel construction requirements, making them the go-to choice for engineers and contractors worldwide.
Conclusion
In tunnel construction, ensuring the stability of the surrounding rock is paramount. Self-drilling rock bolts offer a versatile, efficient, and cost-effective solution for reinforcing tunnels in a wide range of geological conditions. Their ability to combine drilling and grouting in a single operation, along with their adaptability to different ground types, makes them an essential tool in modern tunneling projects. By choosing a trusted supplier like Sinorock, engineers can ensure that their tunnels remain safe and stable for decades to come.
