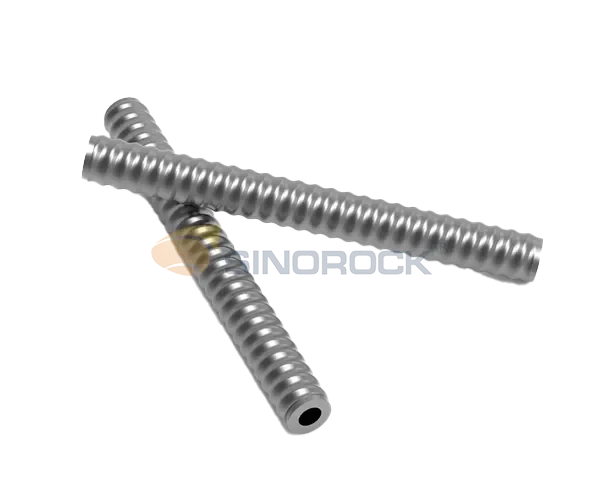

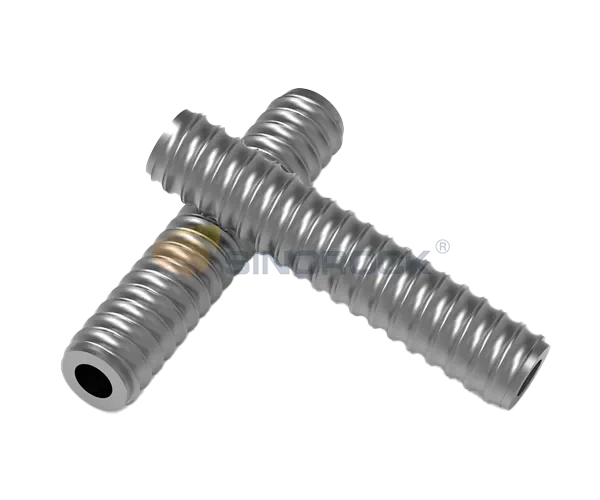

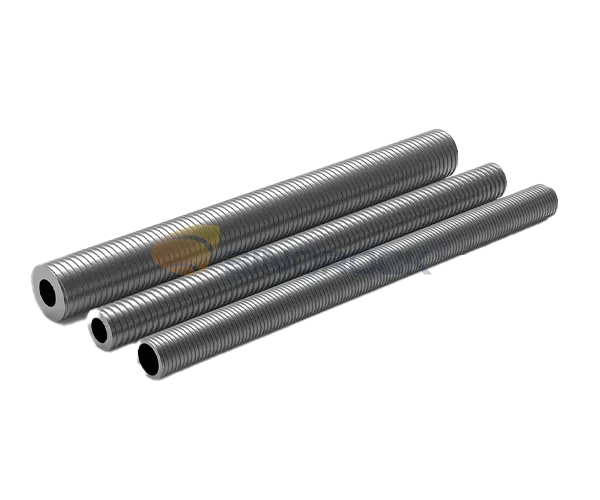

The main component of the self-drilling rock bolt is the hollow anchor bar, which can be classified into two types: R-thread and T-thread. The R-type thread, with its uniform thread, is designed and produced in compliance with ISO 10208 standards and is typically used for small-diameter hollow anchor bars. The T-type thread presents an irregular trapezoidal shape, which has a deeper thread depth than the R-type, offering a larger bonding area with soil. In general, the bonding friction of the same type of T-thread is more than twice that of the R-thread.
The size of our hollow anchor bars include R25, R32, R38, R51, T30, T40, T52, T73, T76, T103, T111, T127, T130, T150 and T200.
1. Cost-effective solution as it doesn’t require casing during the operation. The hollow anchor rod functions as both a drill pipe and an anchor rod, saving both time and resources.
2. Drilling and grouting can be conducted simultaneously, with a reliable anchoring quality that effectively fills fractures and wide grouting spread radius.
3. The hollow anchor bar is designed with a standard full thread, which can be easily cut to meet specific requirements. The cut hollow anchor bars can be connected via couplers, making it ideal for use in confined spaces.
4. The continuous R-thread or T-thread enhances the bonding stress of the self-drilling rock bolt, ensuring reliable and durable anchoring.
Size | Outer Dia. | Ultimate Load | Yield Load | Weight | ||||
| mm | in | kN | kips | kN | kips | kg/m | lbs/ft | |
| SER25N | 25 | 0.98 | 200 | 45 | 150 | 34 | 2.35 | 1.58 |
| SSR32L | 32 | 1.26 | 210 | 47 | 160 | 36 | 2.83 | 1.90 |
| SSR32N | 32 | 1.26 | 280 | 63 | 230 | 52 | 3.50 | 2.35 |
| SSR32S | 32 | 1.26 | 360 | 81 | 280 | 63 | 4.00 | 2.69 |
| SER32L | 32 | 1.26 | 210 | 47 | 160 | 36 | 2.60 | 1.75 |
| SER32N | 32 | 1.26 | 280 | 63 | 230 | 52 | 2.95 | 1.98 |
| SER32S | 32 | 1.26 | 360 | 81 | 280 | 63 | 3.50 | 2.35 |
| SER32S1 | 32 | 1.26 | 405 | 91 | 320 | 72 | 4.00 | 2.69 |
| SCR32L1 | 32 | 1.26 | 250 | 56 | 190 | 43 | 2.60 | 1.75 |
| SCR32N | 32 | 1.26 | 280 | 63 | 230 | 52 | 2.83 | 1.90 |
| SSR38N | 38 | 1.50 | 500 | 113 | 400 | 90 | 5.50 | 3.70 |
| SER38N | 38 | 1.50 | 500 | 113 | 400 | 90 | 4.95 | 3.33 |
| SER38S | 38 | 1.50 | 550 | 124 | 450 | 101 | 5.90 | 3.96 |
| SSR51L | 51 | 2.01 | 580 | 131 | 450 | 101 | 6.75 | 4.54 |
| SSR51N | 51 | 2.01 | 800 | 180 | 630 | 142 | 9.00 | 6.05 |
| SER51L | 51 | 2.01 | 550 | 124 | 450 | 101 | 6.20 | 4.17 |
| SER51L1 | 51 | 2.01 | 660 | 149 | 540 | 122 | 6.75 | 4.54 |
| SER51N | 51 | 2.01 | 800 | 180 | 630 | 142 | 8.20 | 5.51 |
| SER51S | 51 | 2.01 | 925 | 208 | 740 | 167 | 9.25 | 6.22 |
| SER51N | 51 | 2.01 | 800 | 180 | 630 | 142 | 8.20 | 5.51 |
| SER51S | 51 | 2.01 | 925 | 208 | 740 | 167 | 9.25 | 6.22 |
| Note： 1. Customized products are available based on your specific requirements； 2. 1mm=0.03937in 1kN=0.225kips 1MPa=0.1450377ksi 1kg/m=0.672 lbs/ft | ||||||||
Size | Outer Dia. | Ultimate Load | Yield Load | Weight | ||||
| mm | in | kN | kips | kN | kips | kg/m | lbs/ft | |
| SST30L | 30 | 1.18 | 220 | 50 | 180 | 41 | 2.90 | 1.95 |
| SST30N | 30 | 1.18 | 260 | 59 | 220 | 50 | 3.35 | 2.25 |
| SST30S | 30 | 1.18 | 320 | 72 | 260 | 59 | 3.60 | 2.42 |
| SET30S | 30 | 1.18 | 320 | 72 | 260 | 59 | 3.35 | 2.25 |
| SST40N | 40 | 1.57 | 539 | 121 | 430 | 97 | 6.20 | 4.17 |
| SST40S | 40 | 1.57 | 660 | 149 | 525 | 118 | 7.20 | 4.84 |
| SET40N | 40 | 1.57 | 539 | 121 | 430 | 97 | 5.70 | 3.83 |
| SET40S | 40 | 1.57 | 660 | 149 | 525 | 118 | 6.80 | 4.57 |
| SST52N | 52 | 2.05 | 929 | 209 | 730 | 164 | 10.20 | 6.85 |
| SET52N | 52 | 2.05 | 929 | 209 | 730 | 164 | 9.70 | 6.52 |
| SET73L | 73 | 2.87 | 1160 | 261 | 970 | 218 | 13.20 | 8.87 |
| SET73N | 73 | 2.87 | 1585 | 357 | 1270 | 286 | 17.80 | 11.96 |
| SET73S | 73 | 2.87 | 1865 | 420 | 1430 | 322 | 21.20 | 14.25 |
| SET76N | 76 | 2.99 | 1600 | 360 | 1200 | 270 | 16.50 | 11.09 |
| SET76S | 76 | 2.99 | 1900 | 428 | 1500 | 338 | 19.70 | 13.24 |
| SET103N | 103 | 4.06 | 2300 | 518 | 1800 | 405 | 24.80 | 16.67 |
| SET103S | 103 | 4.06 | 3660 | 824 | 2670 | 601 | 44.60 | 29.97 |
| SET111L | 111 | 4.37 | 2640 | 594 | 2000 | 450 | 25.00 | 16.80 |
| SET111N | 111 | 4.37 | 3650 | 821 | 2750 | 619 | 34.50 | 23.18 |
| SET127L | 127 | 5.00 | 2400 | 540 | 1810 | 407 | 30.50 | 20.50 |
| SET130S | 130 | 5.12 | 7940 | 1787 | 5250 | 1181 | 78.00 | 52.42 |
| SET130N | 130 | 5.12 | 6340 | 1427 | 4200 | 945 | 78.00 | 52.42 |
| SET150S | 150 | 5.91 | 8400 | 1890 | 5600 | 1260 | 108.00 | 72.58 |
| SET200S | 200 | 7.87 | 14230 | 3202 | 9500 | 2138 | 183.00 | 122.98 |
| Note： 1. Customized products are available based on your specific requirements； 2. 1mm=0.03937in 1kN=0.225kips 1MPa=0.1450377ksi 1kg/m=0.672 lbs/ft | ||||||||
