In the realm of geotechnical engineering, ensuring the longevity and reliability of structural support systems is paramount. A frequently employed method for reinforcing slopes, foundation pits, tunnels, and similar structures is the self-drilling anchor bolt system. The primary material used in these systems is steel, known for its susceptibility to corrosion when exposed to environmental factors. Corrosion can significantly reduce the lifespan of anchor bolts, thereby compromising the safety and integrity of engineering projects. This article delves into the methods and technologies used to prevent corrosion in self-drilling anchor bolt systems, emphasizing best practices and advanced techniques currently utilized in the industry.
Understanding the Self-Drilling Anchor Bolt System
The self-drilling anchor bolt system is an innovative geotechnical solution that combines drilling, grouting, and anchoring functions into a single process. These systems typically consist of hollow steel rods that serve as both drill rods and anchor rods. During installation, grout is pumped through the hollow core of the rod, exiting through the drill bit to fill cracks and cavities in the surrounding formation. This process provides a solidified anchor that enhances the stability of the structure.
Key Features and Applications
Self-drilling anchor bolts are designed with continuous threads along their entire length, allowing for easy cutting or extension using equal-strength connectors. Common lengths include 2m, 3m, 4m, and 6m, making them versatile for various applications. These systems are particularly beneficial in environments where traditional methods struggle, such as:
- Loose or fractured ground conditions
- Areas prone to collapse
- Reinforcement of existing structures
- Grouting applications to fill voids and stabilize formations
Corrosion Challenges in Self-Drilling Anchor Bolt Systems
Despite their advantages, the steel components of self-drilling anchor bolt systems are vulnerable to corrosion, which can significantly diminish their performance and lifespan. Corrosion occurs when steel reacts with environmental elements such as moisture, oxygen, sulfides, and chlorides, leading to the formation of rust and the eventual weakening of the material. Several factors contribute to the corrosion of self-drilling anchor bolts:
- Exposure to Moisture: Water is a primary catalyst for corrosion. When steel anchor bolts are exposed to moisture, especially in environments with high humidity or groundwater presence, the risk of rust formation increases.
- Chemical Exposure: Certain environments contain aggressive chemicals such as sulfides, chlorides, and acids, which accelerate the corrosion process. These chemicals can be present in natural formations, industrial waste, or seawater.
- Electrochemical Reactions: Stray currents and electrochemical reactions between dissimilar metals can also lead to corrosion. This is particularly relevant in urban or industrial settings where electrical infrastructure and metallic pipelines are prevalent.
Preventive Measures for Corrosion Protection
To mitigate the risks of corrosion, several preventive measures and technologies are employed in the production and installation of self-drilling anchor bolt systems. These measures are designed to shield the steel components from environmental exposure and inhibit the chemical reactions that cause corrosion.
1. Epoxy Coating

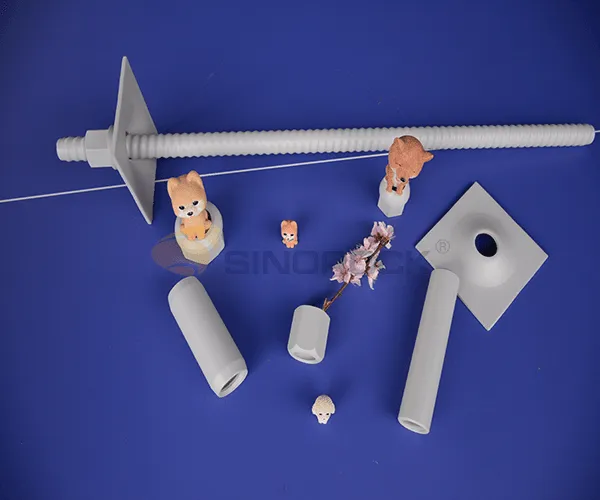

One of the most effective methods for corrosion protection is the application of an epoxy coating to the surface of the anchor bolts. Epoxy coatings act as a barrier, isolating the steel from environmental elements that promote corrosion. The process involves:
- Surface Preparation: The steel surface is thoroughly cleaned to remove any rust, grease, or contaminants. This ensures optimal adhesion of the epoxy coating.
- Application: The epoxy coating is evenly sprayed onto the steel components, including the rod body, drill bit, and connectors. Multiple layers may be applied to achieve the desired thickness and protection level.
- Curing: The coated components are then cured, typically in a controlled environment, to harden the epoxy and form a durable protective layer.
Epoxy coatings are particularly effective in environments containing sulfides, chlorides, and other aggressive chemicals, as well as areas exposed to seawater or stray electrical currents.
2. Hot-Dip Galvanizing
Another widely used method for corrosion protection is hot-dip galvanizing. This process involves immersing the steel components in molten zinc, which forms a protective zinc coating that adheres to the steel surface. The steps involved in hot-dip galvanizing include:
- Cleaning: Similar to the epoxy coating process, the steel components are cleaned to remove impurities that could affect the adhesion of the zinc coating.
- Fluxing: The cleaned components are dipped in a flux solution to prevent oxidation before galvanizing.
- Galvanizing: The components are immersed in a bath of molten zinc, typically heated to around 450°C (842°F). The zinc reacts with the steel to form a series of zinc-iron alloy layers topped with pure zinc.
- Cooling and Inspection: After galvanizing, the components are cooled and inspected to ensure a uniform coating.
Hot-dip galvanizing provides excellent corrosion resistance, particularly in acidic, alkaline, and saline environments. The zinc coating not only acts as a physical barrier but also offers sacrificial protection, meaning the zinc will corrode before the underlying steel does.
Advanced Corrosion Protection Techniques
In addition to traditional methods like epoxy coating and hot-dip galvanizing, several advanced techniques are being developed and implemented to further enhance the corrosion resistance of self-drilling anchor bolt systems.
1. Cathodic Protection
Cathodic protection is an electrochemical method used to prevent corrosion by converting the entire metal surface into a cathode of an electrochemical cell. This can be achieved through two main approaches:
- Sacrificial Anode Protection: Sacrificial anodes, typically made of zinc or magnesium, are attached to the steel components. These anodes corrode preferentially, protecting the steel from corrosion.
- Impressed Current Cathodic Protection (ICCP): In this approach, an external power source applies a small electric current to the steel components, making them cathodic and thus preventing corrosion.
Cathodic protection is especially useful in environments with high levels of moisture, such as marine applications or areas with significant groundwater presence.
2. Duplex Coatings
Duplex coatings combine the benefits of two different protective systems to provide enhanced corrosion resistance. A common duplex system involves the application of a hot-dip galvanized layer followed by an epoxy or polymer topcoat. This combination offers:
- Enhanced Barrier Protection: The topcoat provides an additional barrier, preventing moisture and aggressive chemicals from reaching the galvanized layer.
- Extended Service Life: The combination of two protective layers significantly increases the durability and lifespan of the steel components.
- Improved Aesthetics: The topcoat can be colored or textured to meet specific design requirements, making it suitable for visible structural applications.
Best Practices for Implementation in Engineering Projects
While advanced technologies and protective coatings play a crucial role in preventing corrosion, the successful implementation of these measures depends on adherence to best practices during the design, manufacturing, and installation phases of geotechnical projects.
1. Design Considerations
Incorporating corrosion protection into the design phase of a project is essential. Engineers and designers should:
- Assess Environmental Conditions: Conduct thorough site assessments to identify potential corrosion risks, including the presence of moisture, chemicals, and stray currents.
- Specify Protective Measures: Based on the assessment, specify appropriate corrosion protection methods, such as epoxy coatings, galvanizing, or cathodic protection, in the project design.
- Design for Maintenance: Ensure that the design allows for easy inspection and maintenance of the protective coatings, facilitating long-term performance monitoring and repairs if necessary.
2. Quality Control in Manufacturing
The manufacturing process of self-drilling anchor bolt systems must adhere to stringent quality control standards to ensure the effectiveness of corrosion protection measures. Key steps include:
- Material Selection: Use high-quality steel and other materials that meet industry standards for corrosion resistance.
- Coating Application: Apply protective coatings using standardized procedures, ensuring uniform coverage and adequate thickness.
- Inspection and Testing: Conduct thorough inspections and tests, such as adhesion tests for coatings and thickness measurements, to verify the quality of the protective layers.
3. Proper Installation Practices
The installation phase is critical to the success of corrosion protection efforts. Best practices include:
- Handling and Storage: Store and handle coated components carefully to avoid damage to the protective layers. Use protective coverings and avoid exposing the components to harsh environmental conditions before installation.
- Installation Techniques: Follow recommended installation techniques to prevent damage to the coatings. For example, avoid excessive bending or impact that could compromise the integrity of the protective layers.
- Grouting and Sealing: Ensure proper grouting and sealing around the anchor bolts to provide additional protection against moisture and environmental exposure.
Conclusion
Preventing corrosion in self-drilling anchor bolt systems is essential for maintaining the safety and longevity of geotechnical structures. By understanding the causes of corrosion and implementing comprehensive preventive measures, including material selection, protective coatings, cathodic protection, environmental control, quality manufacturing, and best construction practices, engineers can significantly reduce the risk of corrosion. The case studies illustrate the effectiveness of these measures in real-world applications, highlighting the importance of a proactive approach to corrosion prevention. As the industry continues to evolve, ongoing research and development will further enhance the methods and technologies available for combating corrosion in self-drilling anchor bolt systems.
